Light Curtain Protection H Frame Hydraulic Press Machine 2000 Ton Nominal Force

Huzhou Xinke Forging Machine Co., Ltd
Contact Now

Light Curtain Protection H Frame Hydraulic Press Machine 2000 Ton Nominal Force

Brand Name : XINKE

Certification : CE, ISO9001:2000

Place of Origin : China

MOQ : 1 Unit

Price : USD 100000-1000000 Per Unit

Supply Ability : 8 Units Per Months

Delivery Time : 90-180 Working Days

Packaging Details : Wooden case, waterproof cover

Frame : Straight sided / H frame

Drive : Oil hydraulic

Control : PLC

Application : Drawing / stamping

Safety : Light curtain protection

Contact Now

HY27 2000T H Frame Hydraulic Deep Drawing Stamping Press

Features:

  1. Finite element analyzed straight sided frame or split type frame, high rigidity and precision
  2. 8-facet guiding, high resistance to unbalanced loading
  3. High strokes of working speed for high working efficiency
  4. Displacement sensors are adopted
  5. Interlock of oil cylinders ensure high safety
  6. PLC
  7. Servo control system

Application:

Suitable for the process of drawing, flanging, stamping, blanking of sheet metal in the following industries

  1. Automotive parts, body, brake block, oil tank, chassis, axle housing, bumper
  2. Household appliances, e.g. washing machine, television, refrigerator, electric cooker
  3. Kitchenwear, e.g. stainless steel container
  4. Other vehicle

Accessories for option:

Moveable worktable

Slider adjustment device

Hydraulic cushion adjustment device

Buffering device for punching and trimming

Light curtain safety device

Oil heating device

Displacement sensor

Touch-screen LCD

Floating guide rail for die exchange

Lighting device for working position

Technical Data:

Item Unit HY27-2000
Nominal force kN 20000
Return force kN 2100
Force of hydraulic cushion kN 8000
Buffering force kN 4000*2
Working pressure of medium Mpa 25
Max. opening daylight mm 1800
Loading of worktable t 50
Speed of workable mm/s 50
Stroke of worktable mm 2800
Stroke of slider mm 1300
Stroke of hydrdaulic cushion mm 400
Worktable height above the floor mm 645
Speed of slider Descend mm/s 350
Working mm/s 18-38
Return mm/s 300
Speed of hydraulic cushing Up mm/s 80
Size of worktable L.R. mm 4000
F.B. mm 2500
Size of hydraulic cushion L.R. mm 3200
F.B. mm 1700
Overall size of machine L.R. mm 9065
F.B. mm 8900
Height above the floor mm 10600/8000
Motor power Kw 385

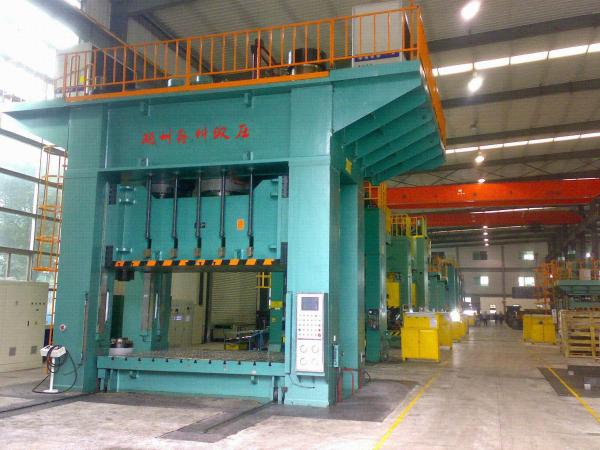

Light Curtain Protection H Frame Hydraulic Press Machine 2000 Ton Nominal Force
